Industrial Tools & Machine Tools Accessories

Product Of Any Type/Dimensions Can Be Manufacture As Per Requirment Customer's Designs And Logos Are Welcome.

LIVE CENTER

We are the Manufacturers & exporters of a wide variety of "Live Center tools".

Some of the standard Live Center Tools are:

Art 351     PRECISIONS LIVE CENTER (DUAL BEARING)






Art 352     HEAVY DUTY LIVE CENTER (TRIPLE BEARING)

Art 353     LATHE CENTERS (DEAD CENTERS)

Art 354

    LATHE CENTERS HALF CENTERS (CARBIDE TIPPED)


Art 355     LIVE CENTER BULL NOSE

Art 356     LATHE CARRIERS (DOGS)


Art 357

    GRINDING CARRIERS



Art 358

    LATHE CHUCK KEYS

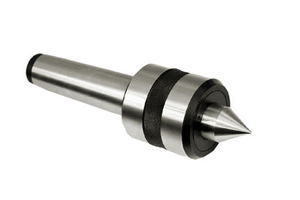

PRECISIONS LIVE CENTER (DUAL BEARING) & (TRIPLE BEARING)

Article No :- 351 - 352






Made of Hardened and Ground high Carbon Steel.

Hardness 55 to 62 HRC

Consists of two 'anti-friction' Bearings

Single Row Deep groove ball bearing and Taper Roller bearing to absorb combined radial and thrust loads.

Maximum speed capacity upto 2000 RPM.


Article No :- 351 - 352

Cat No.



Morse Taper Body Diameter D Point Diameter D Overall Length
Inch mm Inch mm Inch mm
LC-1101 MT 1 1-5/16 34 11/16

18

4-3/4

120

LC-1102 MT 2 2 50 27/32

21

5-7/8

148

LC-1103 MT 3 2-5/16 60 15/16

24

7-1/4

185

LC-104 MT 4 2-1/2 63 1-1/8

28

8-5/8

220

LC-1105 MT 5 3 75 1-1/2

36

10-1/4

260

LC-1106 MT 6 4 100 2-1/8

53

14

355

TOP

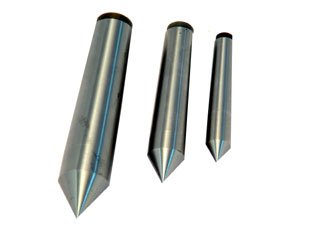

LATHE CENTERS (DEAD CENTERS)

Article No :- 353


60° included Point angle full lathe center

Precision ground and Hardened.

Carbide tipped centers gives longer tool life and offer more wear resistance in both turning or grinding applications thus reducing costs.







Article No:- 353

Carbon Steel Cat. No.

Carbide Tipped Cat NO.

Morse Taper

Overall Length

Inch

mm
DC-1107 DC-1687 MT 0 2-7/8 73
DC-1108 DC-1688 MT 1 3-5/16 84
DC-1109 DC-1689 MT 2 4-3/16 104
DC-1100 DC-1690 MT 3 5-1/4 133
DC-1111 DC-1691 MT 4 6-1/2 165
DC-1112 DC-1692 MT 5 8 203
DC-1113 DC-1693 MT 6 10-5/8 270

TOP








LATHE CENTERS HALF CENTERS (CARBIDE TIPPED)

Article No :- 354


60° Included Point Angle Half Center
Precision ground and Hardened

Article No :- 354

Carbon Steel Cat. No.

Carbide Tipped Cat NO.

Morse Taper

Overall Length

Inch mm
LCH-1114 LCT-800 MT 1 3-5/16 84
LCH-1115 LCT-801 MT 2 4-3/16 104
LCH-1116 LCT-802 MT 3 5-1/4 133
LCH-1117 LCT-803 MT 4 6-1/2 165
LCH-1118 LCT-804 MT 5 8 203

TOP








LIVE CENTERS (BULL NOSE)

Article No :- 355


Designed to hold pipe and hollow work
Preloaded bearings to achieve good thrust and radial Capacities.
Head made from Heat treated hardened high Carbon Alloy steel


Article No :- 355

Cat No. Morse  Taper Size Head Dia D Total Length A Head Length a1 Nose Length a2 Nose Dia d Angle E
Inch mm Inch mm Inch mm Inch mm Inch mm
LCBN-1119 MT 2

2.48

63

5.37

136

2.48

63

1.42

36

0.46

11.7

70°

LCBN-1120 MT 3

3.07

78

6.77

172

3.03

77

1.65

42

 0.71

18

70°

LCBN-1121 MT 4

5.04

128

7.62

193

3.07

78

2.45

62

1.38

35

75°

LCBN-1122 MT 5 5.8 147 9.60 243 4.125 104 2.90 73 1.38 35 75°

TOP

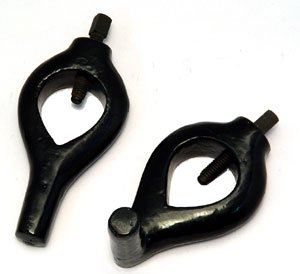

LATHE CARRIERS (DOGS)

Article No :- 356




Manufactured from high Grade Iron

Provided with Square Head Screw

Available in both straight and Bent Styles

Sizes above and including 4" are fitted with two screws instead of one






Article No :- 356

Cat No. Straight Type Cat No. Bent type

Capacity

Inch mm
LCD-1123 LCD-831

1/2

12

LCD-1124 LCD-832

3/4

20

LCD-1125 LCD-833

1

25

LCD-1126 LCD-834

1-1/4

30

LCD-1127 LCD-835

1-1/2

38

LCD-1128 LCD-836

1-3/4

45

LCD-1129 LCD-837

2

50

LCD-1130 LCD-838

2-1/2

65

LCD-1131 LCD-839

3

75

LCD-1132 LCD-840

4

100

LCD-1133 LCD-841

5

125

LCD-1134 LCD-842

6

150

TOP










GRINDING CARRIERS

Article No :- 357


Carriers for Grinding Machines and light Lathes

Made of malleable Iron

Shiny black finish


Article No :- 357

Cat No.

Capacity

Inch mm
GC-1135 1/4 6
GC-1136 3/8 9
GC-1137 1/2 12
GC-1138 5/8 16
GC-1139 3/4 19
GC-1140 1 25
GC-1141 1-1/4 30
GC-1142 1-1/2 38
GC-1143 1-3/4 45
GC-1144 2 50
GC-1145 2-1/2 65
GC-1146 3 75
GC-1147 3-1/2 90
GC-1148 4 100

TOP








LATHE CHUCK KEYS

Article No :- 358


Hardened and Tempered.

Black Finish.



Article No :- 358

Cat No.
Size of Square
Inch
mm
LCK-1149
15/64

6.00

LCK-1150
9/32

7.00

LCK-1151
15/32

12.00

LCK-1152
1/4

6.35

LCK-1153
5/16

8.00

LCK-1154
3/8

9.50

LCK-1155
7/16

11.20

LCK-1156
1/2

12.70

LCK-1157
9/16

14.30

LCK-1158
5/8

16.00

LCK-1159
11/16

17.50

LCK-1160
3/4

19.00

LCK-1161
1

25.40
