CUTTING TOOLS

Products Of Any Type/Dimension Can Be Manufactured As Per Requirements; CustomersDesigns And Logos Are Welcome.


We are the Manufacturers & exporters of a wide variety of "Cutting Tools".

Some of the standard cutting tools are:

Art 401

    COUNTER SINK & DEBARRING TOOL (ZERO FLUTE)




Art 402

    SINGLE FLUTE COUNTER SINK


Art 403

    COMBINED DRILL AND COUNTER SINKS


Art 404

    TOOL BITS (CUT OFF BLADE)


Art 405

    TOOL BITS (RECTANGULAR)


Art 406

    TOOL BITS (SQUARE)


Art 407

    TOOL BITS (ROUND)


Art 408

    REAMERS ADJUSTABLE HAND


Art 409

    REAMERS REPAIRMENS (TAPER)


Art 410

    REAMERS REPAIRMENS (TAPER SQUARE HEAD)




Art  411

    TAPS (CARBON) UNC-UNF


Art  412

    TAPS CARBONS (BSW-BSF)


Art 413

  TAPS DIES (HEXAGONAL)

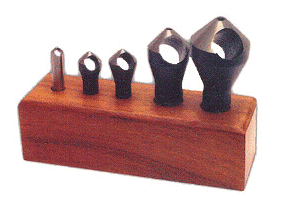

COUNTER SINK & DEBARRING TOOL (ZERO FLUTE)

Article No :- 401


Versatility of cutting in any direction

Built in Chip Breaker Groove. Ready to use

No. Grinding - No Tool Resetting. Economical Alternative to Brazed Tool Tips.

Supplied without Inserts.





Article No :- 401

Cat No

Size

Small Dia

Large Dia

mm

mm

CS-1301 0 Double End 2 5
CS-1302 1 Single End 5 10
CS-1303 2 Single End 10 15
CS-1304 3 Single End 15 20
CS-1305 4 Single End 20 25

NOTE: Available in 82° and 90°

TOP




SINGLE FLUTE COUNTERSINKS

Article No :- 402


Designed for Machine use and light, portable work

Ideal for Chamfering, Debarring and Counter Sinking

Single Flute construction and low controlled relief provide chatter less operation and smooth surface finish

Versatility of this tool should increase productivity on all general purpose applications

Available in 60°, 82° or 90

Made from High Speed Steel

    Also available in six flute


Article No :- 402

Cat No Size   Shank Dia. Overall Length
60° 82°

90°

SFC - 1301 SFC - 1313 SFC - 1324 3/16 3/16 1-1/2
SFC - 1302 SFC - 1314 SFC - 1325 1/4 1/4 2
SFC - 1303 SFC - 1314 SFC - 1326 5/16 1/4 2
SFC - 1304 SFC - 1315 SFC - 1327 3/8" 1/4" 2"
SFC - 1305 SFC - 1316 SFC - 1328 1/2" 1/4" 2
SFC - 1306 SFC - 1317 SFC - 1329 5/8" 1/2" 2-1/4
SFC - 1307 SFC - 1318 SFC - 1330 3/4" 1/2"" 2-3/4
SFC - 1308 SFC - 1319 SFC - 1331 7/8" 1/2" 2-3/4
SFC - 1309 SFC - 1320 SFC - 1332 1" 1/2" 2-3/4
SFC - 1310 SFC - 1321 SFC - 1333 1-1/4" 3/4" 3"
SFC - 1311 SFC - 1322 SFC - 1334 1-1/2" 3/4" 3-3/8"
SFC - 1312 SFC - 1223 SFC - 1335 2" 3/4" 3-3/4"

TOP




COMBINED DRILL AND COUNTER SINKS

Article No :- 403


Used for Producing Center holes in Components or Work pieces which requires machining between Centers.

60°  Countersink Angle fits all Standard Centers

Plain type available in 60°, 82°, or 90° Angle, also available with standard and Long Lengths

Made from High Speed Steel


Article No :- 403

Cat No

Size

Body Dia.

Drill Dia.

Overall Length

A

D

L

SFC - 1336

00

1/8

.025

1-1/8

SFC - 1337

0

1/8

1/32

1-1/8

SFC - 1338

1

1/8

3/64

1-1/4

SFC - 1339

2

3/16

5/64

1-7/8

SFC - 1340

3

1/4

7/64

2

SFC - 1341

4

5/16

1/8

2-1/8

SFC - 1342

4-1/2

3/8

9/64

2-1/2

SFC - 1343

5

7/16

3/16

2-3/4

SFC - 1344

6

1/2

7/32

3

SFC - 1345

7

5/8

1/4

3-1/4

SFC - 1346

8

3/4

5/16

3-1/2

SFC - 1347

9

7/8

11/32

3-5/8

SFC - 1348

10

1

3/8

3-3/4

NOTE: Please mention the angle while ordering.

TOP






TOOL BITS (CUT OFF BLADE)

Article No :- 404



Made from high speed steel.





Article No :- 404

Cat. No. For

Size of Blade

Width Height Length

TB-1349

1/16

5/16

3-1/2

TB-1350

3/32

1/2

4

TB-1351

3/32

5/8

5

TB-1352

1/8

3/4

6

TB-1353

1/8

7/8

6

TB-1354

3/16

1

6

TB-1354

3/16

1-1/8

6

NOTE: Available in M2 and 5% Cobalt

TOP





TOOL BITS (RECTANGULAR)

Article No :- 405


Made from high speed steel.



Article No :- 405

Cat No

Size
M-2 Steel  5% Cobalt

TB-1355

TB-1372

1/4nbsp; x  3/8x  3

TB-1356

TB-1373

1/4nbsp; x  3/8x  4

TB-1357

TB-1374

1/4nbsp; x  1/2x  4nbsp;

TB-1358

TB-1375

1/4nbsp; x  3/4x  5

TB-1359

TB-1376

1/4nbsp; x  1nbsp;   x  6nbsp;

TB-1360

TB-1377

3/8nbsp; x  1/2x  4

TB-1361

TB-1378

3/8nbsp; x  5/8x  5

TB-1362

TB-1379

3/8nbsp; x  3/4x  5

TB-1363

TB-1380

3/8nbsp; x  1nbsp;   x  6

TB-1364

TB-1381

1/2nbsp; x  3/4x  5

TB-1365

TB-1382

1/2nbsp; x 1nbsp;    x  6

TB-1366

TB-1383

1/2nbsp; x 1-1/2”x 6

TB-1367

TB-1384

5/8nbsp; x  3/4x  5

TB-1368

TB-1385

5/8nbsp; x  1nbsp;   x  6

TB-1369

TB-1386

5/8nbsp; x 1-1/4”x 6

TB-1370

TB-1387

3/4nbsp; x 1nbsp;    x  6

TB-1371

TB-1388

3/4nbsp; x 1-1/4”x 6


TOP





TOOL BITS (SQUARE)

Article No :- 406




Made from high speed steel.




Article No :- 406

Cat No.

Size
M-2 5% Cobalt 10% Cobalt
TB-1389 TB-1401 TB-1413 1/8x 2-1/2
TB-1390 TB-1402 TB-1414 3/16x 2-1/2
TB-1391 TB-1403 TB-1415 1/4x 2-1/2
TB-1392 TB-1404 TB-1416 5/16x 2-1/2
TB-1393 TB-1405 TB-1417 3/8x 3
TB-1394 TB-1406 TB-1418 7/16x 3-1/2
TB-1395 TB-1407 TB-1419 1/2x 4
TB-1396 TB-1408 TB-1420 5/8x 4-1/2
TB-1397 TB-1409 TB-1421 3/4x 6
TB-1398 TB-1410 TB-1422 7/8x 6
TB-1399 TB-1411 TB-1423 1x 6
TB-1400 TB-1412 TB-1424 1-1/4x 6

TOP








TOOL BITS (ROUND)

Article No :- 407



Made from high speed steel.



Article No :- 407

Cat. No. M-2 Steel

Size
TB-1425

1/8 x  2-1/2

TB-1426

3/16 x 3-1/2

TB-1427

1/4 x 2

TB-1428

1/4 x 4

TB-1429

5/16 x 4-1/2

TB-1430

3/8 x 5

TB-1431

7/16 x 4

TB-1432

7/16 x 5-1/2

TB-1433

1/2 x 6

TB-1434

5/8 x 6

TB-1435

3/4 x 6


TOP

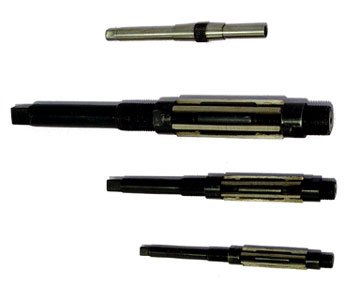

ADJUSTABLE HAND REAMERS

Article No :- 408


Each Reamer expands to the smallest size of next larger size

Reamers are used for light cut, repair work, removing stock or simply for enlarging holes

Reamers can be hand operated by use of wrenches. The size can be adjusted by moving the blades in tapered slots by means of loosening one nut and tightening the other.




Article No :- 408

Cat No.

Size

Range

No. of Blades
Inch mm
AHR - 1436 8/A 1/4 to  9/32 6.35 to 7.14

4

AHR - 1437 7/A  9/32 to 5/16 7.14 to 7.94

4

AHR - 1438 6/A 5/16 to 11/32 7.94 to 8.73

4

AHR - 1439 5/A 11/32 to 3/8 8.73 to 9.52

5

AHR - 1440 4/A 3/8 to 13/32 9.52 to 10.32

6

AHR - 1441 3/A 13/32 to 7/16 10.32 to 11.11

6

AHR - 1442 2/A 7/16 to 15/32 11.11 to 11.91

6

AHR - 1443 A 15/32 to 17/32 11.91 to 13.49

6

AHR - 1444 B 17/32 to 19/32 13.49 to 15.08

6

AHR - 1445 C 19/32 to 21/32 15.08 to 16.67

6

AHR - 1446 D 21/32 to 23/32 16.67 to 18.26

6

AHR - 1447 E 23/32 to 25/32 18.26 to 19.84

6

AHR - 1448 F 25/32 to 27/32 19.84 to 21.43

6

AHR - 1449 G 27/32 to 15/16 21.43 to 23.81

6

AHR - 1450 H 15/16 to 1-1/16 23.81 to 26.99

6

AHR - 1451 I 1-1/16 to 1-3/16 26.99 to 30.16

6

AHR - 1452 J 1-3/16 to 1-11/32 30.16 to 34.13

6

AHR - 1453 K 1-11/32 to 1-1/2 34.13 to 38.10

6

AHR - 1454 L 1-1/2 to 1-13/16 38.10 to 46.04

6

AHR - 1455 M 1-13/16 to 2-7/32 46.04 to 56.36

6

AHR - 1456 N 2-7/32 to 2-3/4 56.36 to 69.85

6

AHR - 1457 O 2-3/4 to 3-11/32 69.85 to 84.93

6


TOP

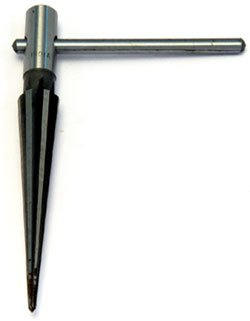

REAMERS REPAIRMENS (TAPER)

Article No :- 409

Removes burrs from small Holes

Enlarges and Countersinks holes in soft metals.

Handy Tool for Mechanics, Electricians, Plumbers



Article No :- 409

Cat No.

Range

Inch

mm

TR-1458

1/8 to 1/2

3.0 to 12.5

TR-1459

1/8 to 5/8

3.0 to 16.0

TR-1460

5/32 to 7/8

4.0 to 22.0




TOP

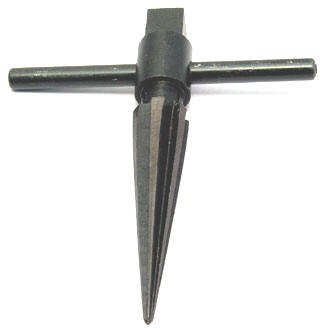

REAMERS REPAIRMENS TAPER (SQUARE HEAD)

Article No :- 410


Removes burrs from small Holes

Enlarges and Countersinks holes in soft metals.

Handy Tool for Mechanics, Electricians, Plumbers


Article No :- 410

Cat No.

Range

Inch

mm

TR-1461

1/8 to 1/2

3.0 to 12.5

TR-1462

1/8 to 5/8

3.0 to 16.0

TR-1463

5/32 to 7/8

4.0 to 22.0


TOP









TAPS (CARBON)

Article No :- 411



Taps are used for cutting internal threads in  holes.

High quality threads.

Manufactured from High Quality Carbon Steel.


ALL TAPS ARE RIGHT HANDS TAPS. ALSO AVAILABLE IN SINGLE
PLUG MODEL, BOTTOMING MODEL AND TAPER MODEL, AND LEFT
HAND CUT THREAD ARE ALSO AVAILABLE.
Available in UNC/UNF, BSW/BSF & Metric Size

Article No :- 411

Set of Three
Taper, Plug, & Bottom  Taps
Cat No.
Thread Size No. of Flutes Thread Length Overall Length

TC-1464

1/4-20 UNC 4

1

2-1/2

TC-1465

1/4-28 UNF 4

1

2-1/2

TC-1466

5/1618 UNC 4

1-1/8

2-23/32

TC-1467

5/1624UNF 4

1-1/8

2-23/32

TC-1468

3/86 UNC 4

1-1/4

2-15/16

TC-1469

3/84 UNF 4

1-1/4

2-15/16

TC-1470

7/1614 UNC 4

1-7/16

3-5/32

TC-1471

7/1620 UNF 4

1-7/16

3-5/32

TC-1472

1/2nbsp; -13 UNC 4

1-21/32

3-3/8

TC-1473

1/2nbsp; -20 UNF 4

1-21/32

3-3/8

TC-1474

9/1612 UNC 4

1-21/32

3-19/32

TC-1475

9/1618 UNF 4

1-21/32

3-19/32

TC-1476

5/8nbsp; -11 UNC 4

1-13/16

3-13/16

TC-1477

5/8nbsp; -18 UNF 4

1-13/16

3-13/16

TC-1478

3/4nbsp; -10 UNC 4

2

4-1/4

TC-1479

3/4nbsp; -16 UNF 4

2

4-1/4

TC-1480

7/8nbsp; - 9  UNC 4

2-7/32

4-11/16

TC-1481

7/8nbsp; -14 UNF 4

2-7/32

4-11/16

TC-1482

1nbsp;   - 8  UNC 4

2-1/2

5-1/8

TC-1483

1nbsp;   -12  UNF 4

2-1/2

5-1/8

TC-1484

1-1/87 UNC 4

2-9/16

5-7/16

TC-1485

1-1/812UNF 4

2-9/16

5-7/16

TC-1486

1-1/47 UNC 4

2-9/16

5-3/4

TC-1487

1-1/412UNF 6

2-9/16

5-3/4

TC-1488

1-3/86 UNC 4

3

6-1/16

TC-1489

1-3/812UNF 6

3

6-1/16

TC-1490

1-1/2 6UNC 4

3

6-3/8

TC-1491

1-1/212UNF 6

3

6-3/8C

TOP








TAPS CARBONS (BSW-BSF)

Article No :- 412

Taps are used for cutting internal threads in holes

High quality threads

Manufactured from High Quality Carbon Steel.


ALL TAPS ARE RIGHT HANDS TAPS. ALSO AVAILABLE IN SINGLE PLUG MODEL, BOTTOMING MODEL AND TAPER MODEL, AND LEFT HAND CUT THREAD ARE ALSO AVAILABLE.
Available in UNC/UNF, BSW/BSF & Metric Size

Article No :- 412

Set of Three Taper, Plug, & Bottom  Taps
Art No.
Size

TC-1492

1/16 -60 B.S.W.

TC-1493

3/32 -48 B.S.W.

TC-1494

1/8nbsp;  -40 B.S.W.

TC-1495

5/32 -32 B.S.W.

TC-1496

3/16 -24 B.S.W.

TC-1497

3/16 -32 B.S.F.

TC-1498

7/32 -24 B.S.W.

TC-1499

7/32 -28 B.S.F.

TC-1500

1/4nbsp;  -20 B.S.W.

TC-1501

1/4nbsp;  -26 B.S.F.

TC-1502

9/32 -20 B.S.W.

TC-1503

9/32 -26 B.S.F.

TC-1504

5/16 -18 B.S.W.

TC-1505

5/16 -22 B.S.F.

TC-1506

3/8nbsp;  -16 B.S.W.

TC-1507

3/8nbsp;  -20 B.S.F.

TC-1508

7/16 -14 B.S.W.

TC-1509

7/16 -18 B.S.F.

TC-1510

1/2nbsp;  -12 B.S.W.

TC-1511

1/2nbsp;  -16 B.S.F.

TC-1512

9/16 -12 B.S.W.

TC-1513

9/16 -16 B.S.F.

TC-1514

5/8nbsp;  -11 B.S.W.

TC-1515

5/8nbsp;  -14 B.S.F.

TC-1516

11/1611B.S.W.

TC-1517

11/1614 B.S.F.

TC-1518

3/4nbsp;  -10 B.S.W.

TC-1519

3/4nbsp;  -12 B.S.F.

TC-1520

13/1610B.S.W.

TC-1521

13/1612 B.S.F.

TC-1522

7/8nbsp; -  9 B.S.W.

TC-1523

7/8 -11 B.S.F.

TC-1524

15/16 - 9 B.S.W.

TC-1525

15/16 -11 B.S.F.

TC-1525

1- 8  B.S.W.

TC-1527

1-10 B.S.F.

TC-1528

1-1/8 - 7 B.S.W.

TC-1529

1-1/8 - 9 B.S.F.

TC-1530

1-1/4 - 7 B.S.W.

TC-1531

1-1/4 - 9 B.S.F.

TC-1532

1-3/8 - 6 B.S.W.

TC-1533

1-3/8 - 8 B.S.F.

TC-1534

1-1/2 - 6 B.S.W.

TC-1535

1-1/2 - 8 B.S.F.

TC-1536

1-5/8 - 5 B.S.W.

TC-1537

1-5/8 - 8 B.S.F.

TC-1538

1-3/4 - 5 B.S.W.

TC-1539

1-3/4 - 7 B.S.F.







DIES ROUND & HEXAGONAL

Article No :- 413
















Hardened and Tempered to perfection



Manufactured from carbon steel.



Available in round and hexagonal style.




UNC/UNF

BSW/BSF

METRIC SIZE

Article No :- 413

Cat. No

Size Outer Dia.
of Dies
Right Hand
Dies.
Left Hand
Dies.

DR-1540

DH-1560

1/4- 20 UNC

1

DR-1541

DH-1561

1/4- 28 UNF

1

DR-1542

DH-1562

5/16- 18 UNC

1/font>

DR-1543

DH-1563

5/16- 24 UNF

1

DR-1544

DH-1564

3/8- 16 UNC

1

DR-1545

DH-1565

3/8- 24 UNF

1

DR-1546

DH-1566

7/16- 14 UNC

1-1/2

DR-1547

DH-1567

7/16- 20 UNF

1-1/2

DR-1548

DH-1568

1/2- 13 UNC

1-1/2

DR-1549

DH-1569

1/2- 20 UNF

1-1/2

DR-1550

DH-1570

9/16- 12 UNC

1-1/2/font>

DR-1551

DH-1571

9/16- 18 UNF

1-1/2

DR-1552

DH-1571

5/8- 11 UNC

1-1/2

DR-1553

DH-1573

5/8- 18 UNF

1-1/2

DR-1554

DH-1574

3/4- 10 UNC

1-1/2

DR-1555

DH-1575

3/4- 16 UNF

1-1/2

DR-1556

DH-1576

8-   9 UNC

2

DR-1557

DH-1577

7/8- 14 UNF

2

DR-1558

DH-1578

1-  8 UNC

2

DR-1559

DH-1579

1- 12 UNF

2



TOP



Along with its impeccable looks, the rolex replica sale will also be equally durable as the original. Rolex, often recognized as a replica watches, is a synonym of elegant style and unsurpassed quality. Rolex watches are considered as perpetual treasures that never fail to allure the customers. Hans Wilsdorf, founder of the Rolex Company, plays a significant role in designing eternal styles of rolex replica as he believed in providing the best quality product to its customers. With every new collection of rolex replica uk, the brand amazes the people by its extraordinary look and technical impeccability. rolex replica sale are offered in a variety of models like sports, classic and many others.
