SURFACE MARKING BLOCKS

We are the Manufacturers & exporters of a wide variety of "Surface Marking Blocks".

Some of the standard Surface Marking Blocks are:



Art 171

    SURFACE MARKING BLOCK


Art 172

    SURFACE MARKING BLOCK (ROUND)


Art 173

    MICROMETER STAND










SURFACE MARKING BLOCK

Article No :- 171

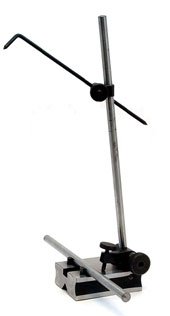

  Basic tool for machinist and toolmakers for accurately scribing lines, transferring measurements and probing during inspection work.

Polished and hardened Steel base with double ended scriber.

Polished and hardened Steel base with double ended scriber.

Front Recessed for depressing Spindle below base level.

Has fine Adjustment for precise angular movement.

Base has 2 retractable Pins to set against edge of a Surface plate.

1/4" (6.35 mm) hole drilled on adjustment knob for positioning a dial indicator.


Article No :- 171
Cat. No.

Base Dimension L / W / H

Length of Spindle

Diameter of Spindle

INCH
MM
INCH
MM
INCH
MM

SMB-401

2-3/16 x 1-5/8 x ¾

55 x 40 x 20

4 & 7

100 & 175

1/4

6.35

SMB-402

3-1/4 x 2-1/2 x 1

82 x 63 x 25

9 & 12

225 & 300

3/8

9.5

SMB-403

4 x 3-1/2 x 1-1/8

100 x 90 x 30

12 & 18

300 & 450

3/8

9.5

SMB-404

3-1/4 x 2-1/2 x 1

82 x 63 x 25

9

225

3/8

9.5

SMB-405

3-1/4 x 2-1/2 x 1

82 x 63 x 25

12

300

3/8

9.5

TOP










Article No :- 172

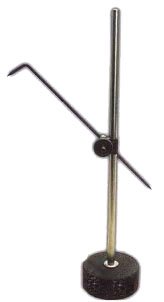

Sturdy construction surface gage


Consists of Adjusting knob and hardened scriber.


Round base made of close grain Cast Iron.


Very useful for every workshop







Article No :- 172
Cat. No.
Height
Base Diameter
INCH
MM
INCH
MM
SMBR-406
12
300
3-1/8
80
SMBR-407
20
500
3-1/8
80

TOP










MICROMETER STAND

Article No :- 173


Single Clamping action stand to hold and set micrometer at various angles.

Chrome Plated clamping 'C' and black oxidized clamping Screw with cross knurled handle.

Suitable for Digital and mechanical micrometers

Maximum possible revolvement is 180

Enameled Stand with Cast Iron base.



Article No :- 173
Cat No..

Diameter of Base

Holding Capacity

Inch
mm
Inch
mm
MS-408
4-3/8
110
9/16
15n
